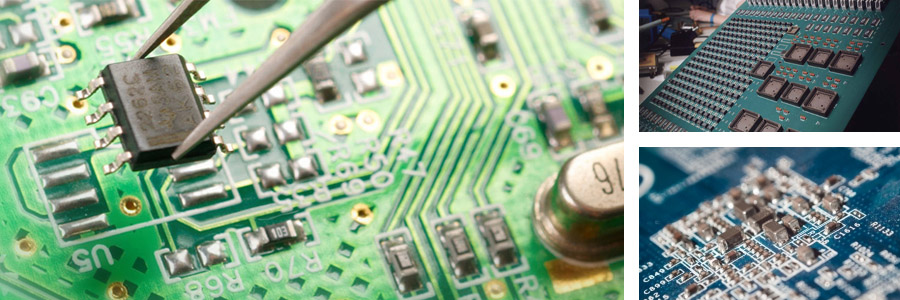

PC Board Assembly

PC Board Assembly

Three Arrows Corporation will apply our over 40 years of experience in PC board assembly to your next project.

We’re flexible in that we can deliver PC boards built using consigned material, or assembled and soldered complete to print as a turn-key part number.  Material is procured based on bill of material specifications.  We assign no minimum or maximum quantities so that our valued customers may order as requirements or pricing dictates.  Quality is continually monitored throughout the assembly and soldering phases to ensure that your product exceeds your expectations.  On-time delivery is just one measure of customer satisfaction.

Prototype through production quantities using both IM and SM components are standard product configurations using customer designs.

In addition to custom forming and trimming tooling and ESD-controlled workstations, Three Arrows Corporation has the PC board assembly equipment necessary to manually build and inspect to designated industry standards.

PC Board Assembly Comprehensive Equipment Listing:

  • Air-Vac PCBRM-10 soldering rework station
  • American Hakko soldering station
  • Bausch & Lomb StereoZoom® 4, 0.7x - 3x microscope with illuminators
  • HEPCO, Inc. prep equipment
  • Hexacon Therm-O-Trac Power Boost System soldering station
  • Loupot prep equipment
  • Luma Electric Co. resistance soldering unit
  • Metcal SmartHeat® Technology temperature-controlled soldering station
  • Novastar Convection Reflow Oven, Model 1200
  • Oryx miniature soldering irons / transformers
  • Pace MBT Rework Station
  • Sondad Industries, Inc. prep equipment
  • Technical Devices Nu/Clean AquaBatch Jr. Aqueous Batch Cleaner (closed loop system)
  • Technical Devices Nu/Era Jr. - 10-inch Wave Solder Systems machine (configured to 63/37 alloy)
  • Ungar 4700 SMC/IC Removal/Reflow Station
  • Wahl soldering irons / transformers

Request a Quote for Your Next Project

Our skilled team of assembly experts has the experience to work with you on your PC board assembly requirements.   With over 40 years of experience in PC board assembly, we’ve become the experts that manufacturers rely on when quality and dependability are mission critical.

Call us today at (607) 723-9567 or visit our online quote request form to get started today.
